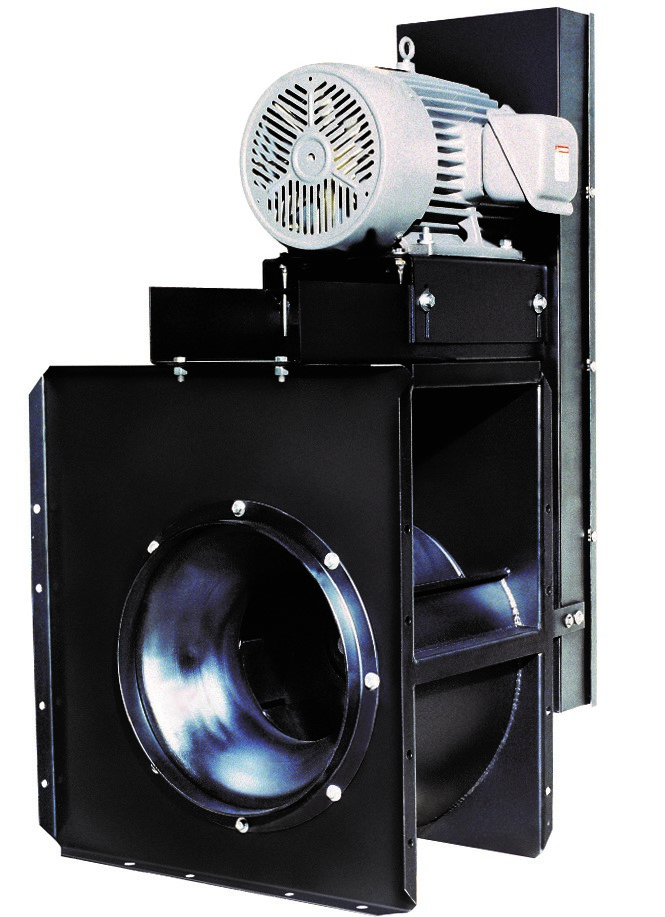

SQB Square Fans
Chicago Blower's SQB Square Fan is regarded as a high performance, trouble free fan proven in a myriad of industrial applications. With its backward inclined wheel and square housing design, the SQB is efficient, economical and versatile. It is also quickly available through Chicago's Quick Ship Fan program. "Packaged" fans, those furnished with motor, V-belt drive, belt guard and other options, are factory aligned, run tested and shipped ready to install. By eliminating jobsite assembly, the packaged SQB Square Fan can substantially reduce overall installation cost.
Product Bulletin: SQB
Operation & Maintenance Manual: Industrial Centrifugal Fans
SQB Square Fan Applications
The SQB Type "B" wheel has backward inclined blades designed to handle corrosive or dusty airstreams. Typical applications include oven circulators, dust collector exhaust fans, fume exhausters and emissions control system. Since the blades are solid steel, the "B" wheel is ideal for custom applied corrosion resistant coatings. The SQB is also suited for high temperature gasses and air to 650° F. For greater safety in explosive environments, spark resistant construction is offered. The versatile SQB Square Fan is furnished in 14 sizes in Arrangements 1, 9 or 9H and in three classes of construction.
Fan Options
  • Punched flanged inlet
  • Punched flanged outlet
  • Housing drain
  • Cleanout door
  • Inlet screen
  • Mounted belt guard
  • Shaft cooler and guard
  • Shaft and bearing guard
  • Spark resistant construction
  • Slip fit inlet
  • Shaft seal
  • Extended grease tube fittings
  • Inlet volume control
  • A/9 Mount motor and drive
  • Companion flanges
  • Arrangement 8
  • Chicago type "B" wheel
  • Greater efficiency
  • Steep pressure characteristics
  • Adjustable discharge positions
  • Rugged steel housing
  • Flanged outlet
  • Removable bearing brackets
  • Precision shafts
  • Adjustable motor base
  • Four-way gusset
  • AMCA certified performance for air and sound
  • Sizes: 12-1/4 to 44-12
  • Volumes to 70,000 CFM
  • Pressures to 17” wg
  • Temperatures to 650°F
