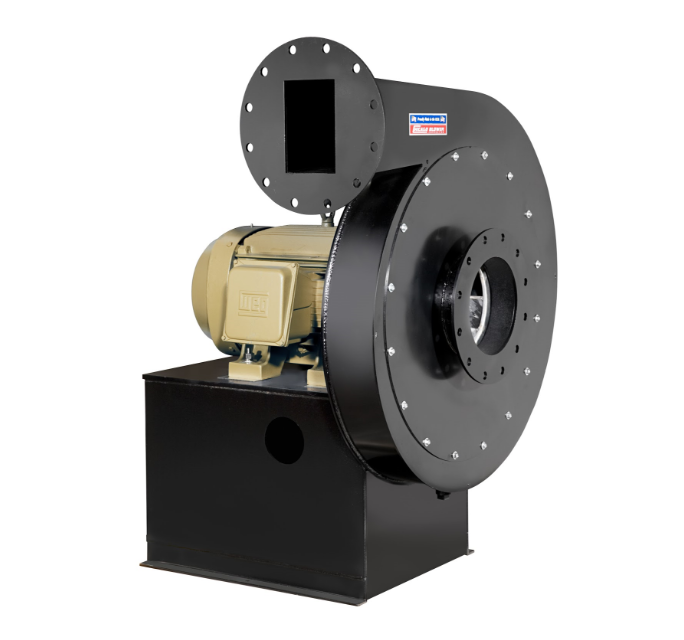

Single Stage Pressure Blower
An extremely wide performance range is provided by 70 wheel/housing combinations. The Design 53 Single Stage Pressure Blower is available in four arrangements and eight discharge positions to suit most every application. In addition to direct drive, the Design 53 is also available in belt drive.
Product Bulletin: CPB
Operation & Maintenance Manual: Industrial Centrifugal Fans
Single Stage Pressure Blower Applications
Chicago's Design 53 Single Stage Pressure Blower is designed for combustion air, fluid bed aeration, cooling, drying and many process system applications. It is also commonly used in pneumatic conveying systems.
Fan Options
  • Inlet venturi
  • Flanged inlet
  • Rubber sleeve
  • Inlet air filters
  • Slip tube
  • Discharge elbow
  • Spacer for blast gate
  • A/9H Mounted belt guard
  • Butterfly valve blast gates
  • Drain
  • Drain plug
  • Inlet screen
  • Type "B" and "C" spark resistant construction
  • Steel wheel
  • Shaft and bearing guard
  • Extended grease fittings
  • Shaft seal
  • Shaft cooler and guard
  • Cork pads
  • Efficient "constant velocity" wheel design provides smooth stable air flow
  • Wide performance range afforded by 70 wheel/housing combinations
  • Heavy gauge housings and pedestals rigidly braced for strenuous duty
  • Available in four arrangements and eight discharge positions; belt drive or direct drive
  • Sizes: A to R
  • Volumes to 18,000 CFM
  • Pressures to 91” wg
  • Temperatures to 650°F
